- Plastic Thru Hull, Dual/High Definition Side Imaging 20/60/180 Degree, 200/83/455/800 kHz with built-in temperature
- Compatible with: all HELIX Side Imaging units except HELIX 7 CHIRP MSI GPS G3/G3N/G4/G4N, HELIX 7 SI GPS G4 to the maximum capability of the transducer
- Also compatibility with 1199ci HD SI, 999ci HD SI, 899ci HD SI, 1198c HD SI, 998c HD SI, 998c SI, 898c HD SI, 898c SI to the maximum capability of the transducer
- Cable Length: 30 Feet

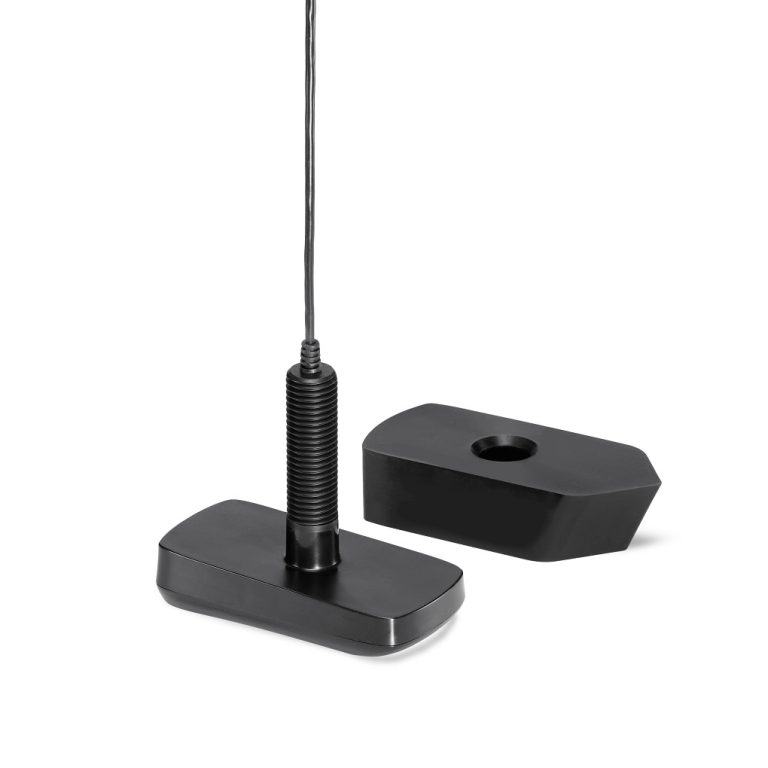

- Transducer dimensions: 5.95″L X 3″W. Shaft diameter: 1.0″. Fairing block included
- 1-Year Limited Warranty
| Model | XPTH 9 HDSI 180 T – Plastic Thru Hull HD Side Imaging Down Imaging Transducer |
| Product Code | 710210-1 |
| UPC | 0082324507625 |
| Mount Type | Thru-Hull |
| Sonar Type | Side Imaging, 2D |
| Current Models | HELIX 10, HELIX 9, HELIX 7, HELIX 12, HELIX 5 |
| Discontinued Series | 800 Series, 700 Series, 1100 Series, 900 Series |
