SIMRAD NSX 3009 Active Imaging 3-in-1

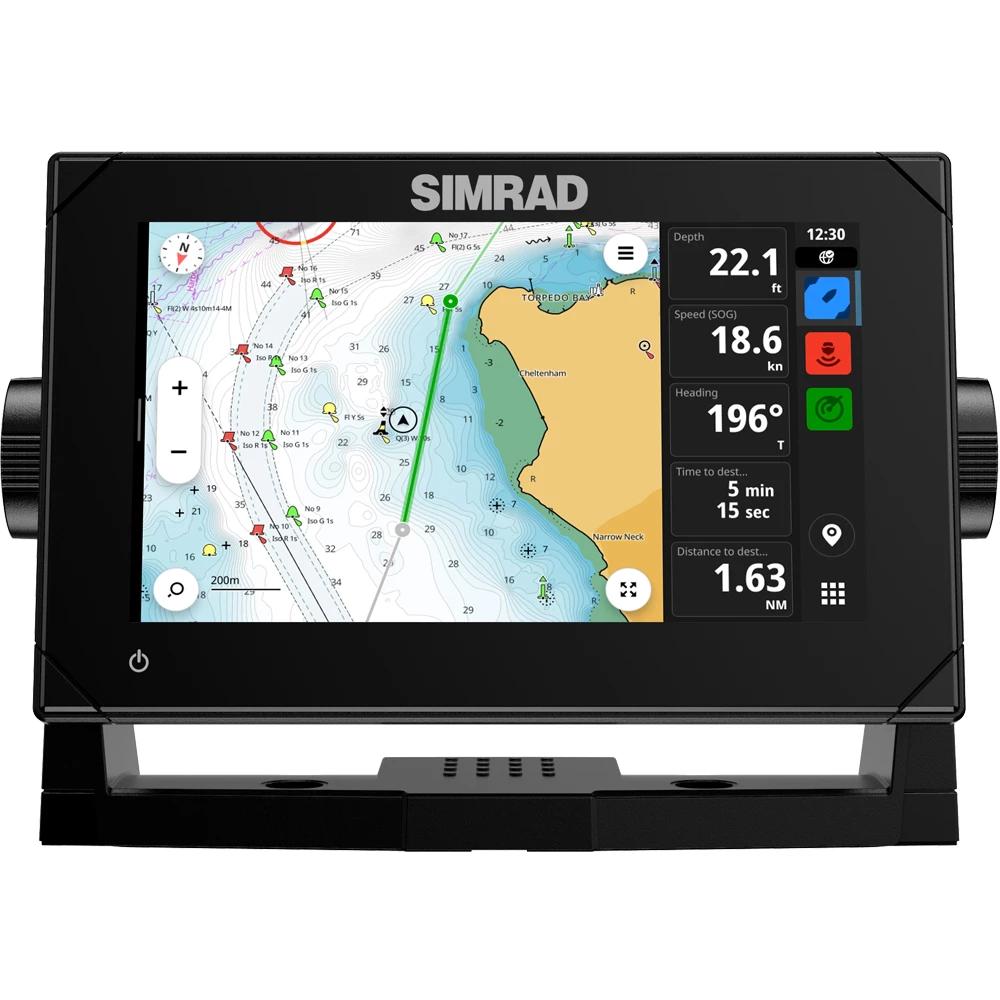

Simrad NSX 3009 je moderan višenamjenski nautički uređaj koji objedinjuje GPS navigaciju, prikaz pomorskih karata i napredni sonar za pronalaženje ribe i pregled podvodnog terena. Opremljen je zaslonom osjetljivim na dodir dijagonale 9 inča i isporučuje se u konfiguraciji s Active Imaging sondom.
Namijenjen je rekreativnim ribolovcima i vlasnicima motornih brodica koji žele preciznu navigaciju i kvalitetan prikaz onoga što se nalazi ispod plovila.

Display

Size and Type 9″ SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1280 x 720 px Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1200 nits Backlight Color White

Power

Supply Voltage 12 V DC (10 – 17 V DC min – max) Power Consumption max 18.8 W (1360 mA at 13.8 V) Recommended Fuse Rating 3A

Physical

Dimensions W x H x D With bracket: W: 263.0 mm (10.35″) x H: 172.6 mm (6.80″) x D: 80.6 mm (3.17″) No bracket, no suncover: W: 239.0 mm (9.40″) x H: 148.5 mm (5.85″) x D: 80.6 mm (3.17″) No bracket, with suncover: W: 243.7 mm (9.59″) x H: 153.4 mm (6.03″) x D: 85.6 mm (3.37″) Weight 1.2 kg (2.6 lbs) MountingType Bracket (supplied), panel mount or flush mount Compass Safe Distance 50 cm (1.7 ft)

Environmental

Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G

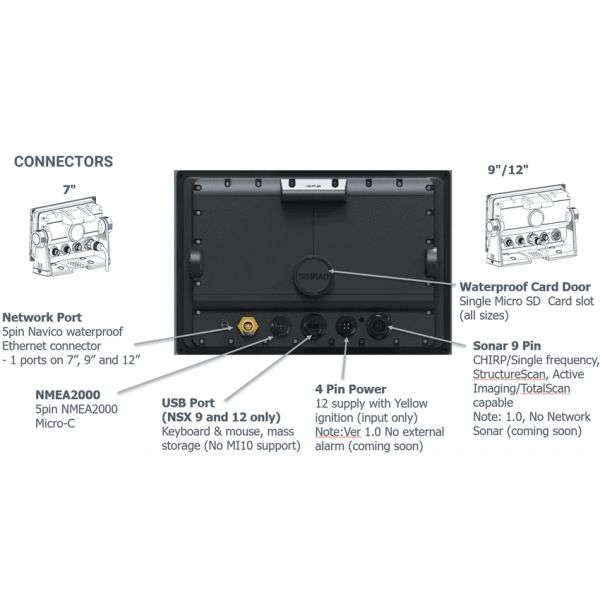

Interface and connections

Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
