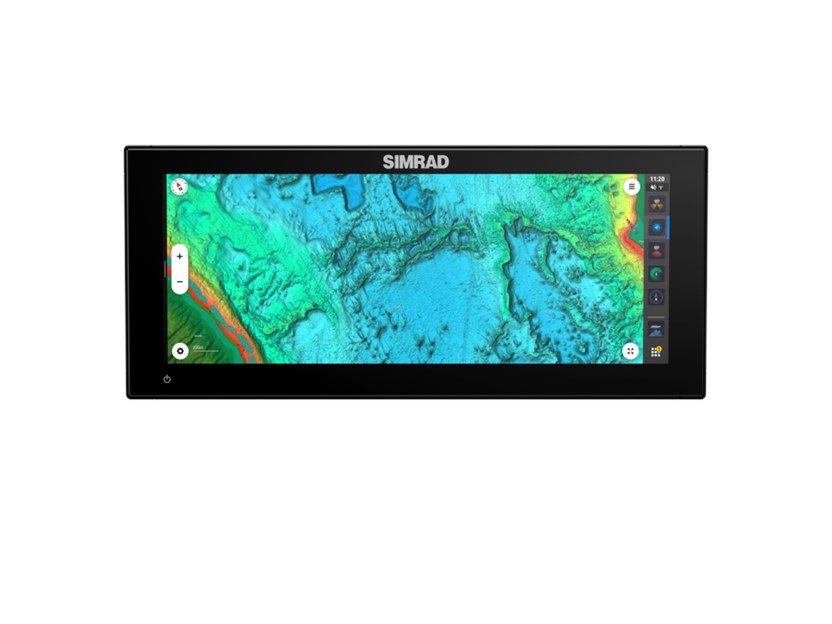

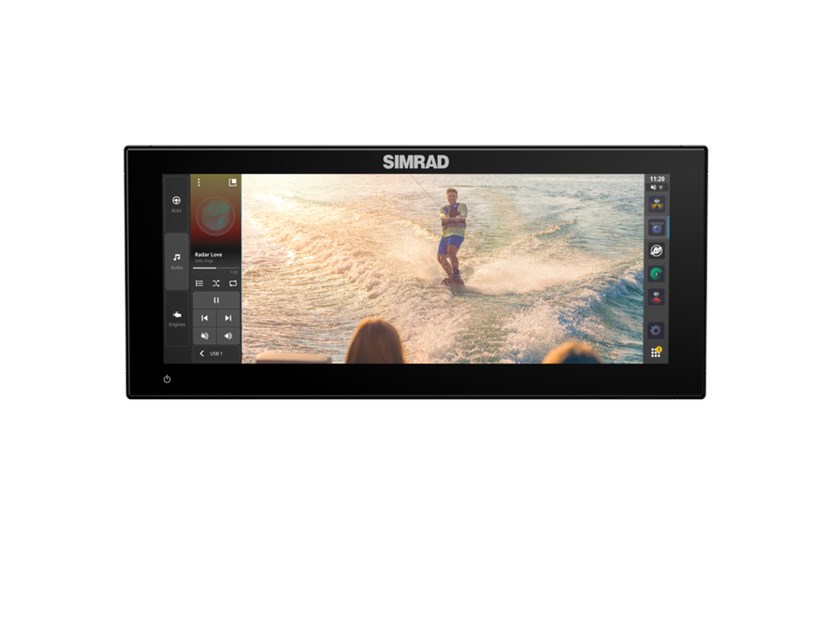

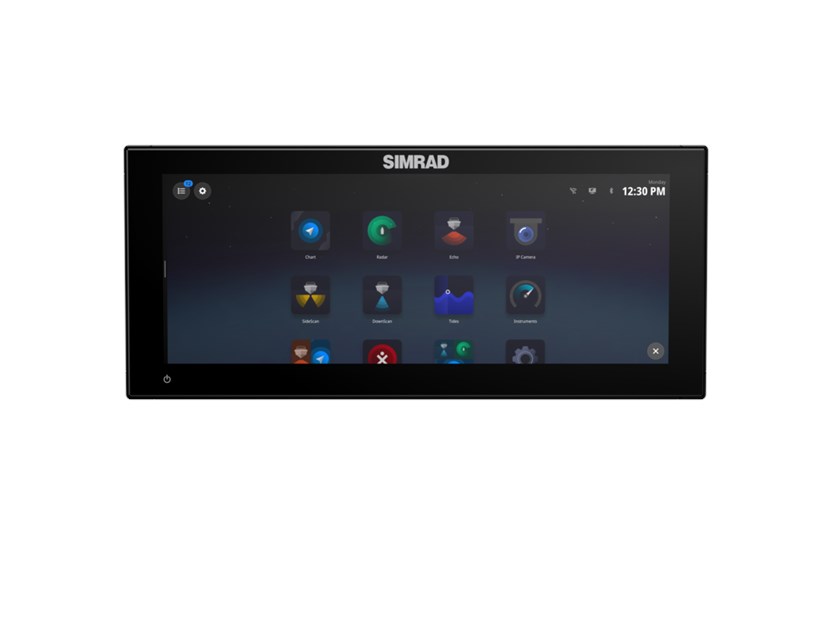

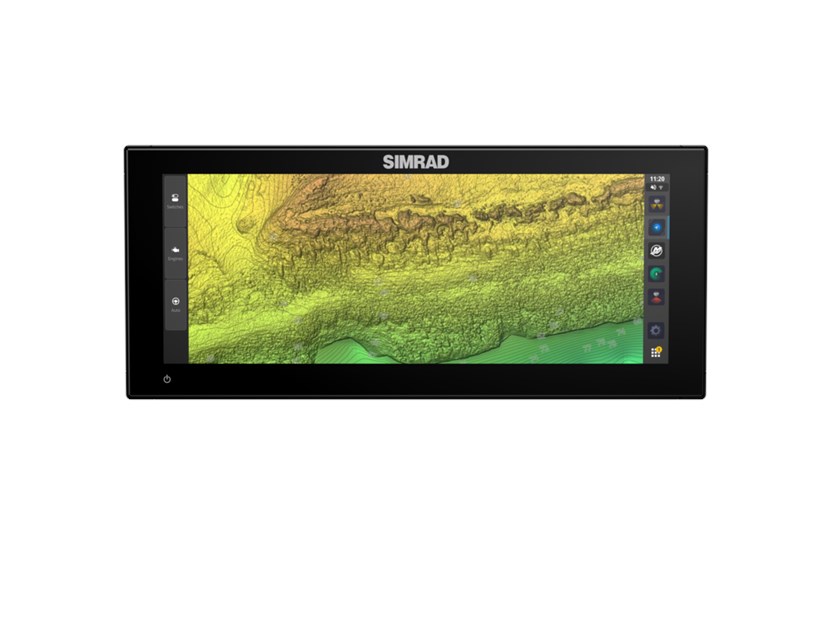

SIMRAD NSX 3015 ULTRAWIDE Active Imaging 3-in-1

SKU: 000-16278-001 Marka: Simrad

Zaslon: SolarMAX IPS, rezolucija 1920 × 720 piksela
Navigacija: ugrađeni GPS i podrška za C-MAP DISCOVER X i REVEAL X
Sonar: ugrađeni CHIRP sonar, kompatibilan s odgovarajućim Active Imaging i xSonic sondama
Povezivost: Wi-Fi, Bluetooth, Ethernet i NMEA 2000

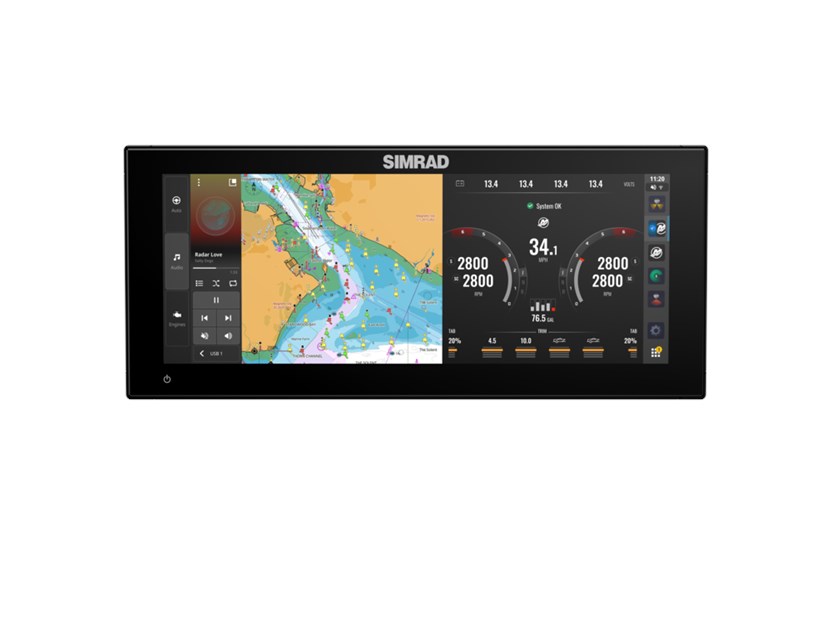

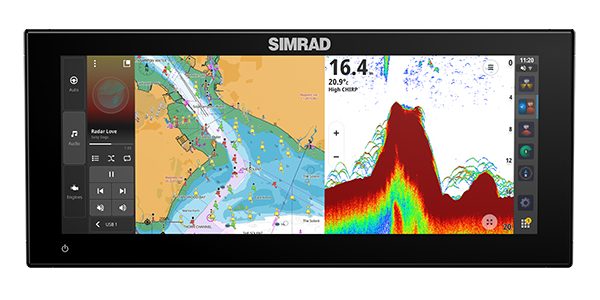

Podijeljeni prikaz: istodobno pratiš pomorsku kartu i sonar na širokom zaslonu

U paketu:

Simrad NSX ULTRAWIDE uređaj – zaslon osjetljiv na dodir s GPS-om, ploterom i ugrađenim sonarom
Active Imaging 3-u-1 sonda – uključena je samo u verziji koja izričito navodi „with Active Imaging 3-in-1”, omogućuje CHIRP, SideScan i DownScan
Kabel napajanja i osigurač – za priključivanje uređaja na električni sustav plovila
Zaštitni poklopac i pribor za montažu – poklopac zaslona, brtva za ugradnju u instrumentnu ploču i komplet za stražnju montažu

Izvorna cijena bila je: 4.920,50 €.Trenutna cijena je: 4.428,50 €.Cijena 14.10.2026.: 4.920,50 €

× Rok isporuke 10-15 dana (ukoliko nema na zalihi)

Usporedi

Metode plaćanje

Opis

Simrad NSX ULTRAWIDE je širokoformatni ploter i fishfinder koji objedinjuje navigaciju i sonar na jednom izduženom zaslonu. Dostupan je u veličinama od 12 i 15 inča.

Display

Backlight Color

White

Resolution

1920 x 720 px

Display Size

14.5 inches

Screen Brightness

>1200 nits

Viewing Angles

85° (top, bottom, left, and right)

Physical

Compass Safe

50 cm (1.7 ft)

Dimensions WxHxD

No Bracket, no suncover: W: 390.0 mm (15.55″) x H: 170.4 mm (6.71″) x D: 88.5 mm (3.48″)
With gimbal bracket: H: 180. mm (7.10″) D:96.5 mm (3.80″)

Mounting Type

Rear mount (bracket supplied), Bracket mount (bracket optional)

Weight

1.9 kg (4.2 lbs)

Electrical

Power Consumption max

25 W (1811 mA at 13.8 V)

Recommended Fuse Rating

Supply Voltage

12 V DC (10 – 17 V DC min – max)

Environment

Humidity

IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Operating Temperature Range

-15°C to 55°C (5°F to 131°F)

Shock Vibration

100,000 cycles of 20 G

Storage Temperature Range

-20°C to 60°C (-4°F to 140°F)

Waterproofrating

IPx6 and IPx7

Connectivity

Bluetooth

Bluetooth 4.0 with support for Bluetooth Classic

Ethernet Ports

1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars

Connectivity Wi Fi

IEEE 802.11b/g/n

NMEA 2000 Connectivity

1 x NMEA 2000 Micro-C port, 1 LEN

PC Connectivity

SD Card Storage

1 MicroSD slot, 1 port (USB A)

Video

Ip Camera support

Features

AIS

Receive AIS data over NMEA 2000

Cartography included

C-MAP® DISCOVER X

Digital Switching

C-Zone, Simrad COMMAND DDS

GPS

Internal, 10Hz, WASS, MSAS, EGNOS

Sonar Compatibility

One 9 pin Xsonic Sonar port. Single channel CHIRP, 50/200 Khz, HDI, Active Imaging.

Autopilot Compatibility

NAC-1, NAC-2, NAC-3 and NAC-D

Waypoints, Routes, Tracks

6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.

Weather

Not in first release

GPS

Correction

10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS

GPS Receiver Channels

32 Channels

Position Accuracy

Horizontal Accuracy 3 m (9.8 ft)

Update rate

10Hz

Cartography

Charts Supported

C-MAP X-Generation – DISCOVER X and REVEAL X Charts

Support for additional charting options such as CMOR Mapping, Florida Marine Tracks, StrikeLines and Standard Mapping will continue to become available throughout 2024.
